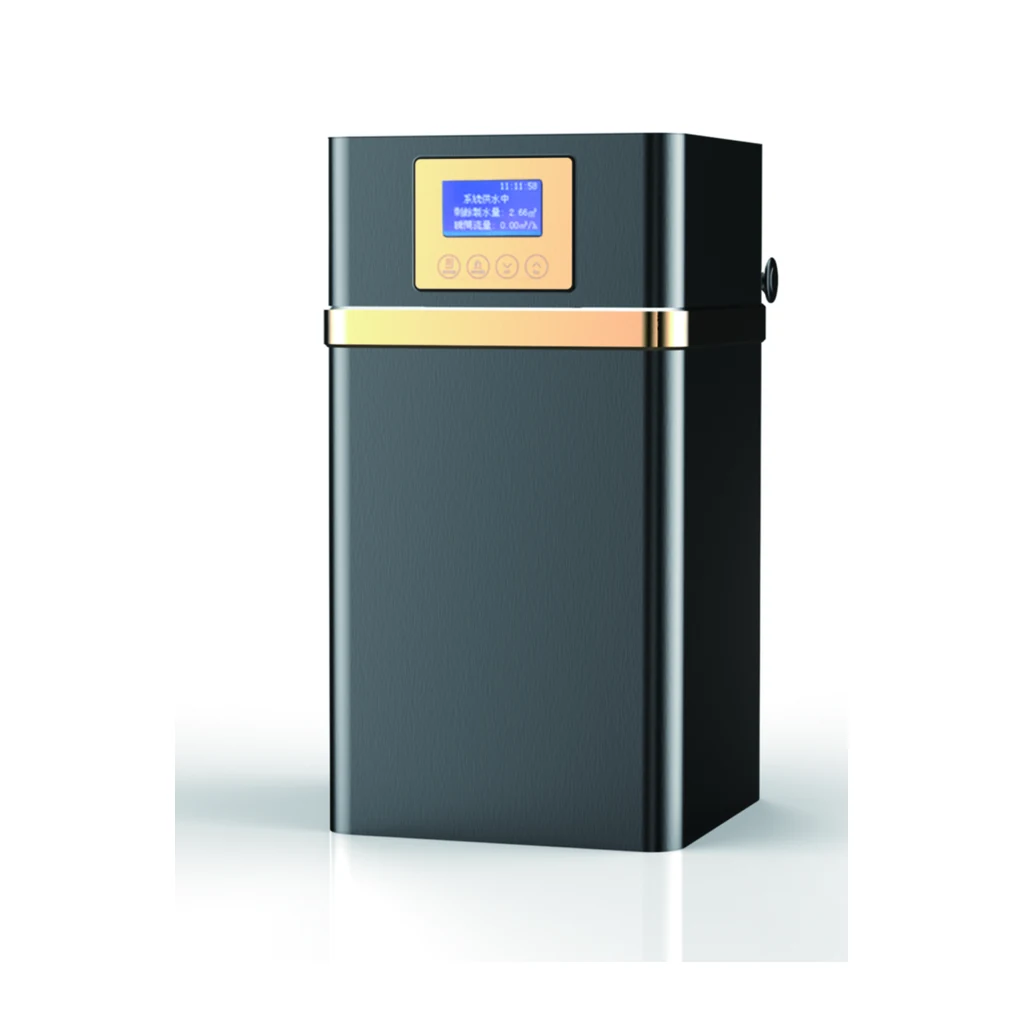

Automatic Water Filter
YC-J1000
YC-J1000 has the source-listed Product Size(with By-pass) value 278X278X510mm.
Request a Quote for YC-J1000Automatic Water Filter · three exact models
YC-J Automatic Water Filter Series
Compare three rectangular-cabinet automatic filter models by source-listed flow rate, activated-carbon volume, FRP tank size and enclosure size.
Three source-mapped models
Each image is a deterministic crop from the approved product-only PDF panel; no product geometry, color, controller or accessory was redrawn.
Automatic Water Filter
YC-J2000
YC-J2000 has the source-listed Product Size(with By-pass) value 278X278X710mm.
Request a Quote for YC-J2000
Automatic Water Filter
YC-J3000
YC-J3000 has the source-listed Product Size(with By-pass) value 278X278X1020mm.
Request a Quote for YC-J3000Technical specification comparison
The YC-J Automatic Water Filter Series comparison uses the owner-approved public YC identifiers. Every technical value and unit below preserves the reviewed source notation.
| Specification | YC-J1000 | YC-J2000 | YC-J3000 |
|---|---|---|---|
| Valve Type | Automatic filter valve | Automatic filter valve | Automatic filter valve |
| Working Pressure | 0.15-0.5MPa | 0.15-0.5MPa | 0.15-0.5MPa |
| Working Temperature | 5~48℃ | 5~48℃ | 5~48℃ |
| Power Supply | 220V/110 50Hz | 220V/110 50Hz | 220V/110 50Hz |
| Inlet & Outlet size | 3/4" | 3/4" | 3/4" |
| Flow Rate | ≤1.0T/H | ≤2.0T/H | ≤3.0T/H |
| Activated Carbon Volume | 12L | 18L | 25L |
| FRP Tank Size | 1015 | 1024 | 1035 |
| Product Size(with By-pass) | 278X278X510mm | 278X278X710mm | 278X278X1020mm |
Purpose and working principle
The reviewed YC-J Automatic Water Filter Series table identifies an automatic filter valve and activated-carbon volume. In a typical filter configuration, the valve controls service and cleaning cycles around the FRP tank; media grade and verified treatment performance require separate confirmation.
Selection and inquiry inputs
- Choose one of the three exact YC-J model rows.
- Confirm the listed activated carbon volume, FRP tank size and YC-J Automatic Water Filter Series cabinet size.
- Provide feed-water analysis and operating conditions for the intended automatic water filter configuration.
- Include the YC-J electrical requirement, connection details and project quantity in the quote request.
Frequently asked questions
Which YC-J Automatic Water Filter Series model lists the middle source row?
YC-J2000 lists ≤2.0T/H, 18L Activated Carbon Volume, FRP Tank Size 1024 and Product Size(with By-pass) 278X278X710mm.
How do the smallest and largest YC-J rows compare?
YC-J1000 lists ≤1.0T/H and 12L Activated Carbon Volume; YC-J3000 lists ≤3.0T/H and 25L Activated Carbon Volume.
Is the YC-J source-listed flow a guaranteed operating result?
No. Each YC-J flow value is preserved as a source-listed selection row and must be confirmed against feed-water conditions and system design.
What should be sent with a YC-J Automatic Water Filter Series quotation request?
Provide the exact YC-J model, feed-water analysis, electrical requirement, connection details, intended configuration and project quantity.
