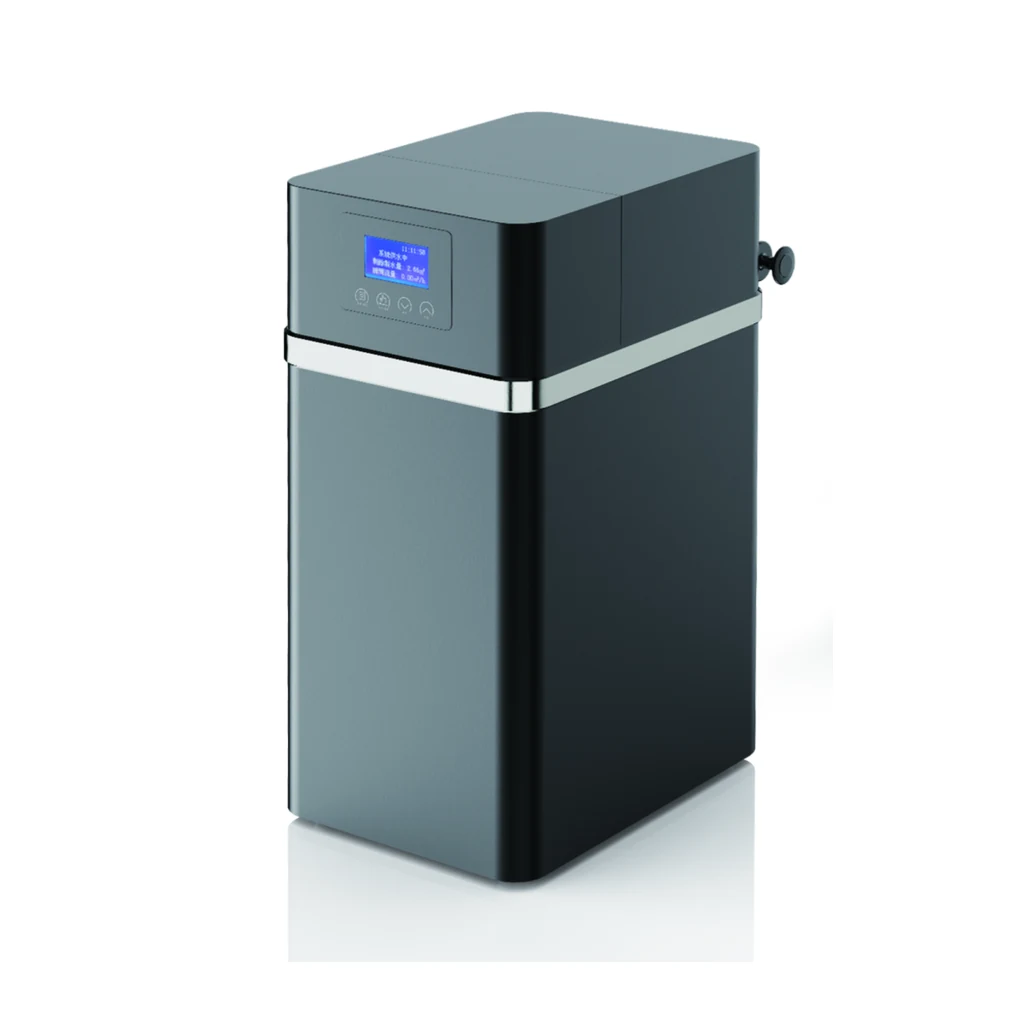

Automatic Water Softener
YC-R1000A
YC-R1000A has the source-listed Product Size(with By-pass) value 270X420X510mm.
Request a Quote for YC-R1000AAutomatic Water Softener · three exact models
YC-RA Automatic Water Softener Series
The YC-RA suffix identifies a distinct source-shown cabinet family while preserving the reviewed 12 L, 18 L and 25 L resin-volume ladder.
Three source-mapped models
Each image is a deterministic crop from the approved product-only PDF panel; no product geometry, color, controller or accessory was redrawn.
Automatic Water Softener
YC-R2000A
YC-R2000A has the source-listed Product Size(with By-pass) value 270X420X710mm.
Request a Quote for YC-R2000A
Automatic Water Softener
YC-R3000A
YC-R3000A has the source-listed Product Size(with By-pass) value 270X420X1020mm.
Request a Quote for YC-R3000ATechnical specification comparison
The YC-RA Automatic Water Softener Series comparison uses the owner-approved public YC identifiers. Every technical value and unit below preserves the reviewed source notation.
| Specification | YC-R1000A | YC-R2000A | YC-R3000A |
|---|---|---|---|
| Valve Type | Automatic Softener valve | Automatic Softener valve | Automatic Softener valve |
| Regeneration Mode | Meter Timer Mix/Timer | Meter Timer Mix/Timer | Meter Timer Mix/Timer |
| Working Pressure | 0.15-0.5MPa | 0.15-0.5MPa | 0.15-0.5MPa |
| Power Supply | 220V/110 50Hz | 220V/110 50Hz | 220V/110 50Hz |
| Inlet & Outlet size | 3/4" | 3/4" | 3/4" |
| Drain Size | 12mm | 12mm | 12mm |
| Working Temperature | 5~48℃ | 5~48℃ | 5~48℃ |
| Brine Valve | Yes | Yes | Yes |
| Resin Volume | 12L | 18L | 25L |
| FRP Tank Size | 1015 | 1024 | 1035 |
| Flow Rate | ≤1.0T/H | ≤2.0T/H | ≤3.0T/H |
| Product Size(with By-pass) | 270X420X510mm | 270X420X710mm | 270X420X1020mm |
Purpose and working principle
The reviewed YC-RA Automatic Water Softener Series table identifies an automatic softener valve, Meter Timer Mix/Timer regeneration mode, resin volume and a brine valve. In a typical softening configuration, the valve controls service and regeneration around the resin bed; resin chemistry and rated capacity require separate confirmation.
Selection and inquiry inputs
- Choose one of the three exact YC-RA model rows.
- Confirm the listed resin volume, FRP tank size and YC-RA Automatic Water Softener Series cabinet size.
- Provide feed-water analysis and operating conditions for the intended automatic water softener configuration.
- Include the YC-RA electrical requirement, connection details and project quantity in the quote request.
Frequently asked questions
Which YC-RA Automatic Water Softener Series model lists the middle source row?
YC-R2000A lists ≤2.0T/H, 18L Resin Volume, FRP Tank Size 1024 and Product Size(with By-pass) 270X420X710mm.
How do the smallest and largest YC-RA rows compare?
YC-R1000A lists ≤1.0T/H and 12L Resin Volume; YC-R3000A lists ≤3.0T/H and 25L Resin Volume.
Is the YC-RA source-listed flow a guaranteed operating result?
No. Each YC-RA flow value is preserved as a source-listed selection row and must be confirmed against feed-water conditions and system design.
What should be sent with a YC-RA Automatic Water Softener Series quotation request?
Provide the exact YC-RA model, feed-water analysis, electrical requirement, connection details, intended configuration and project quantity.
