E600-S-Min Commercial RO Water Dispenser
Compact Floor-Standing RO DispenserThe E600-S-Min is a compact commercial RO water dispenser for offices, cafes, hotel kitchens and other managed drinking-water points. Its white or gray cabinet can be configured with 100G or 400G reverse-osmosis purification, a 5 L or 10 L hot tank, TDS monitoring and a filter-life reminder.
Branding note: KAMAMUTA shown on the sample units is display branding. OEM and private-label projects can specify the badge, control-panel artwork, manuals and carton design.

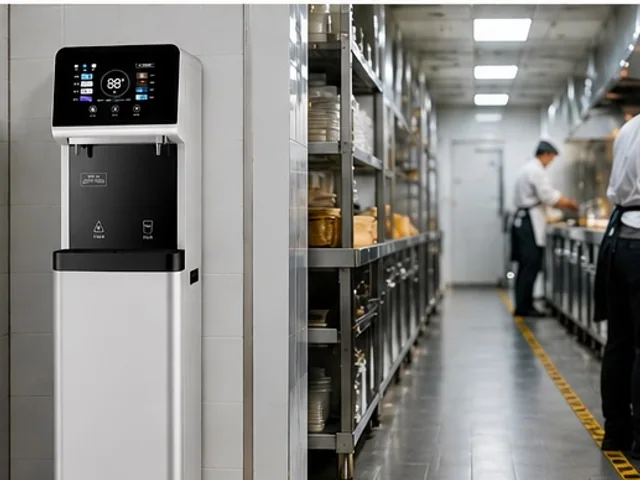

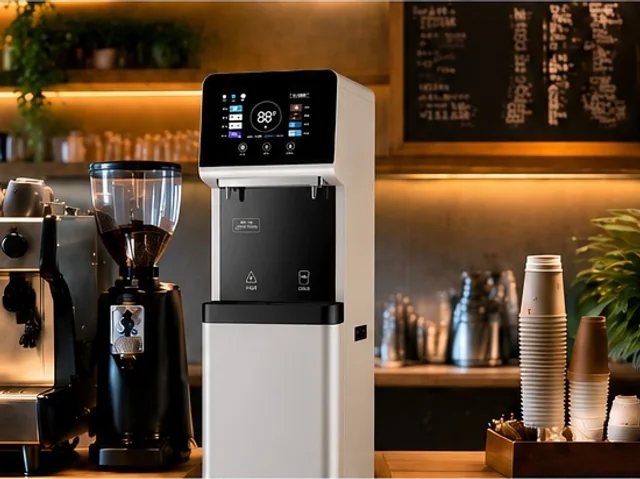

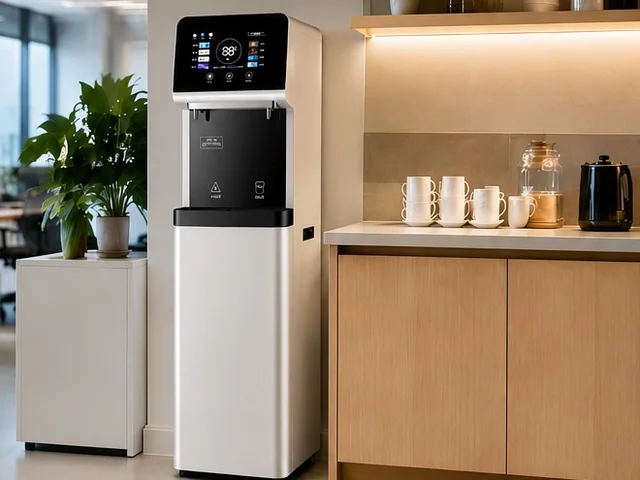

Application scenes
One compact dispenser for three service environments
The cabinet format can be planned for staff hydration, beverage preparation or back-of-house drinking-water service.
E600-S-Min technical specifications
| Model | E600-S-Min |
|---|---|
| Product type | Compact floor-standing commercial RO water dispenser |
| Net dimensions | 400 x 400 x 1450 mm |
| Packing dimensions | 465 x 465 x 1495 mm |
| RO capacity | 100G or 400G, selected by project |
| Purified water flow | 0.26 L/min with 100G or 1.05 L/min with 400G configuration |
| Hot water output | 20 L/h |
| Hot tank options | 5 L (1000 W) or 10 L (1500 W), according to the supplied configuration sheet |
| Electrical configuration | 220 V, 50 Hz; heating rating is confirmed with the selected tank before quotation |
| Standard outlets | One hot-water outlet and one ambient-water outlet |
| Cooling options | 0.6 L electronic cooling or 8 L compressor cooling; rating confirmed with the chosen cooling package |
| Ambient-water tank | Deep-drawn SUS 304 stainless-steel tank |
| Cabinet construction | 0.8 mm galvanized steel with stainless-steel parts, anti-rust treatment and three-proof powder coating |
| Optional pressure tank | Built-in 3.2-gallon tank; one main unit may supply one or two satellite dispensers after site engineering |
| Control option | 365-day countdown or IoT universal control board |
| Cabinet colors | White or gray |
| Weight | 35 kg net; 38 kg packed |
Monitoring, safety and project options
- LED interface displays TDS, water temperature and remaining filter life.
- Four temperature settings support different workplace and beverage-service routines.
- One-touch dispensing separates hot and ambient-water operation.
- An intelligent child lock protects the hot-water control.
- Automatic sleep after three unused hours reduces unnecessary standby operation.
- RO output, hot tank, cooling, pressure tank and cabinet finish are selected for the project.
Confirm the site before selecting the configuration
For an accurate quotation, provide the expected user count, inlet-water analysis, peak-use pattern, required temperatures, electrical standard, available floor area, order quantity and destination. These details determine the RO output, storage arrangement, cooling package and service parts.

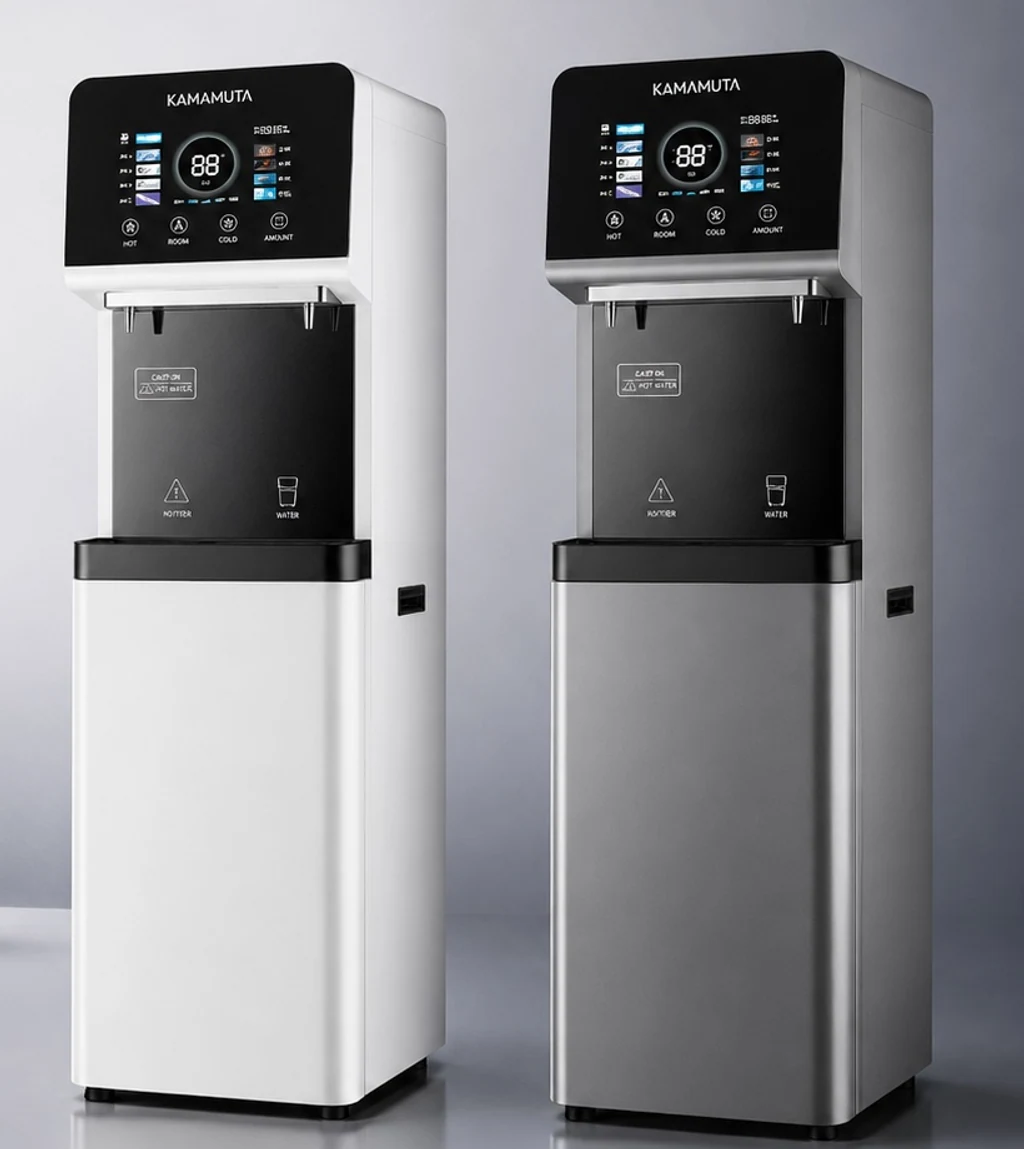

Compact cabinet
White and gray finishes for managed commercial interiors
The E600-S-Min uses a narrow floor-standing cabinet for locations that need an integrated purifier without a separate countertop appliance. The two finish options help distributors coordinate the unit with office pantries, cafe counters and hotel service areas.
Purification choice
100G or 400G RO output matched to actual demand
The 100G option supports moderate point-of-use demand, while 400G provides higher purified-water flow. Where a project needs additional outlets, the optional 3.2-gallon pressure tank and satellite-dispenser layout must be checked against pipe length, pressure and simultaneous use.
FAQ
E600-S-Min commercial RO water dispenser FAQ
The E600-S-Min uses a different compact cabinet and control-panel design while sharing the configurable 100G/400G purification, hot-tank and monitoring platform confirmed for the E600-S range.
The supplied product presentation shows white and gray cabinet versions. Final color, badge and panel artwork are confirmed before production.
Yes. Capacity selection should reflect inlet-water quality, daily consumption, peak demand and the planned storage or distribution arrangement.
No. Cooling and the built-in 3.2-gallon pressure tank are optional configurations and must be listed in the quotation request.
Provide quantity, destination, user count, inlet-water analysis, RO capacity, hot-tank size, cooling requirement, voltage, cabinet color, branding files, control option and packaging requirements.
