RO Seawater Desalination Equipment & Industrial RO Machine Manufacturer
Industrial RO MachineRO Seawater Desalination Equipment & Industrial RO Machine Manufacturer is reviewed as a seawater desalination RO system for project buyers. Engineering confirmation should cover feed-water analysis, target output, recovery rate, pretreatment design, pump and membrane selection, control panel logic and skid or export packing. Key specifications include Raw water pump: CMI4-4 raw water pump, shared fresh water pump design where suitable..
Buyer selection notes
RO Seawater Desalination Equipment & Industrial RO Machine Manufacturer is specified around seawater salinity, intake conditions, target output, high-pressure pump selection, membrane array, recovery rate and corrosion-resistant components. For coastal or marine projects, these details are more important than a broad reverse osmosis plant manufacturer claim.
Details to confirm before quotation
- Salinity range, intake water condition and target output
- Pretreatment, high-pressure pump and membrane array
- Recovery rate, power supply and corrosion-resistance needs
- Frame, container, spare parts and coastal-project documents
Buyer notes for RO Seawater Desalination Equipment & Industrial RO Machine Manufacturer
For RO Seawater Desalination Equipment & Industrial RO Machine Manufacturer, seawater desalination pages should separate project facts from generic purifier language. The useful details are salinity range, pretreatment, high-pressure components, cleaning access, frame material, instrumentation and transport protection.
Information to confirm
- Feed-water salinity and water analysis
- Required permeate flow and recovery target
- Pretreatment, high-pressure pump and membrane configuration
- Frame material, instruments, cleaning access and packing
Technical Specifications
Industrial RO Machine Specification Guide
| Item | Specification |
|---|---|
| Product Type | RO seawater desalination equipment and industrial RO machine |
| Material | Stainless steel frame, FRP or stainless steel tanks, PVC piping, PP/PVC security filters and industrial electrical components |
| Size | Customized by capacity, membrane quantity, tank count, frame layout, dosing system and site space |
| Micron Rating | Common security filter options include 5 micron PP filter cartridge and pleated filter cartridges |
| Flow Rate | 1 ton, 2 ton, 3 ton, 5 ton per hour or larger custom capacity |
| Application | Seawater desalination, brackish water treatment, industrial process water, commercial water treatment and RO water plant projects |
| OEM/ODM | Logo, label, packaging, tank quantity, valve brand, pump model, membrane brand, voltage, control panel and carton or crate design |
| MOQ | Project based; confirm by capacity, component list, engineering drawing and customization level |
System Components
RO machine component options
| Pretreatment tanks | Two-tank or three-tank systems with quartz sand filter, activated carbon filter and softening tank options. |
|---|---|
| Tank and valve choices | FRP tanks, stainless steel tanks, automatic filter valves, Runxin valves, Fleck valves, water distributor and center tube. |
| Security filtration | Precision filters with 20 inch PP filter cartridges or pleated filter cartridges before RO membranes. |
| RO main machine | Reverse osmosis membrane rack, membrane housings, high pressure pump, conductivity meter, PLC or touch screen control and stainless steel frame. |

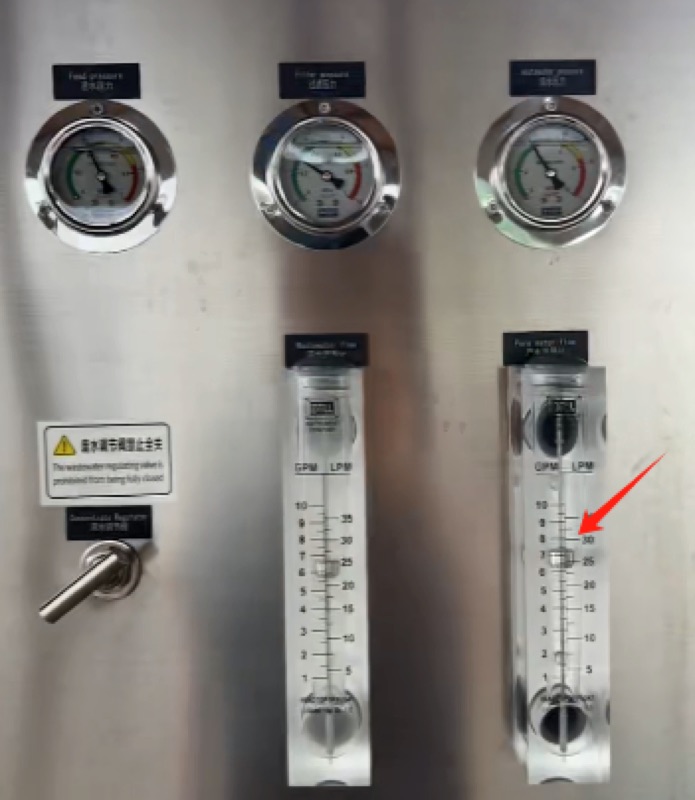

| Control parts | Float switch, low pressure switch, solenoid valve, pressure gauges, flow meters and electrical control cabinet. |
| Export supply | Protective wrapping, fixed frame support, wooden crate packaging, shipping marks and destination-port document support. |
Example Configuration
Seawater desalination equipment reference BOM
| Raw water pump | CMI4-4 raw water pump, shared fresh water pump design where suitable. |
|---|---|
| Sand filter | 1665 FRP tank, Runxin Automatic Control Valve F67B1-A, quartz sand 2-4 mm 150 kg and 1-2 mm 50 kg. |
| #1 security filter | 20" x 5 PVC filter housing x 1 pc, 20" 5 micron PP filter cartridge x 5 pcs. |
| #2 security filter | 20" x 5 PVC filter housing x 1 pc, 20" pleated filter cartridge x 5 pcs. |
| Dosing system | PE dosing tank 40 L x 1 pc, MF100 metering pump 5-9 L/h x 1 pc. |

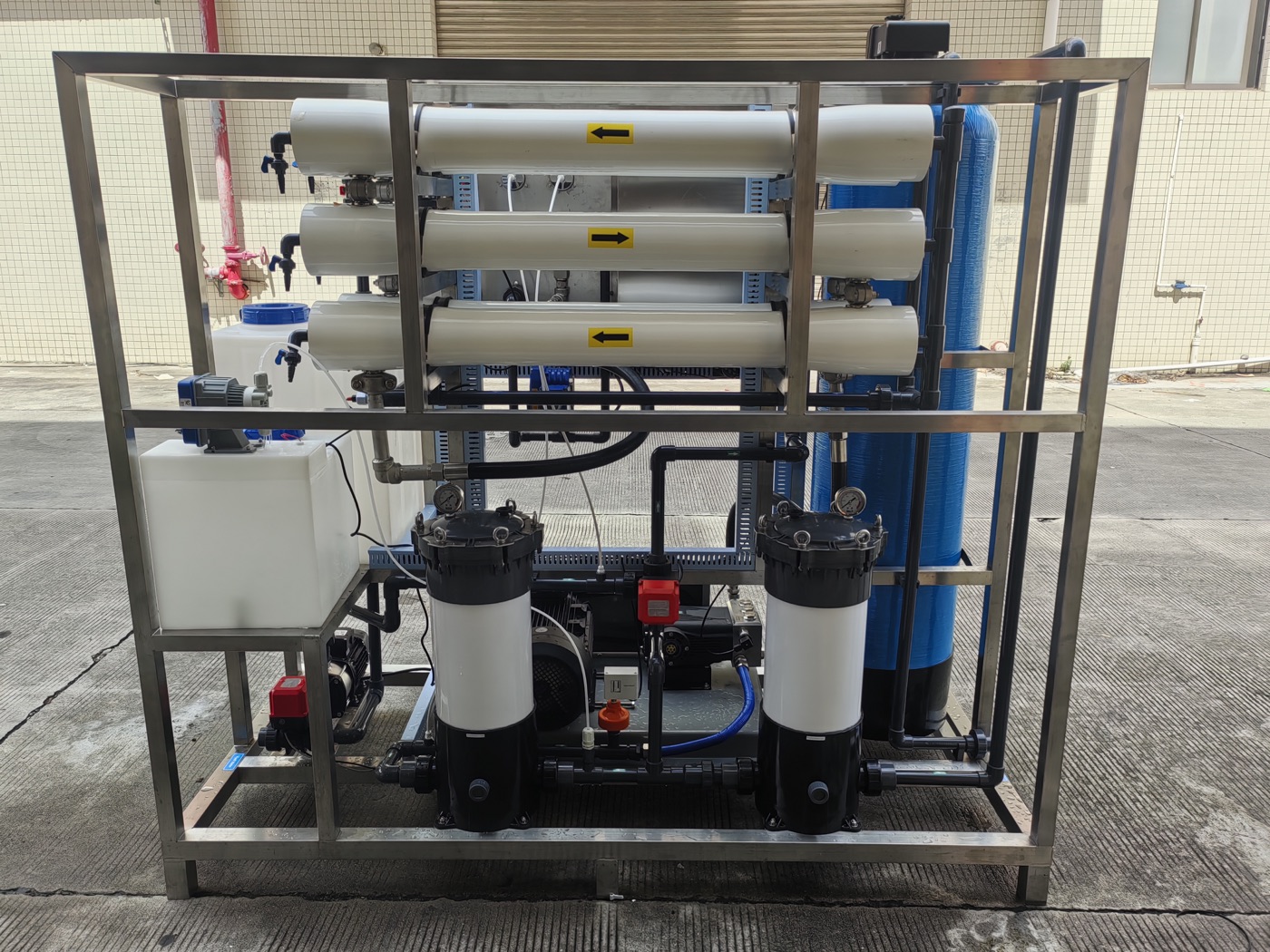

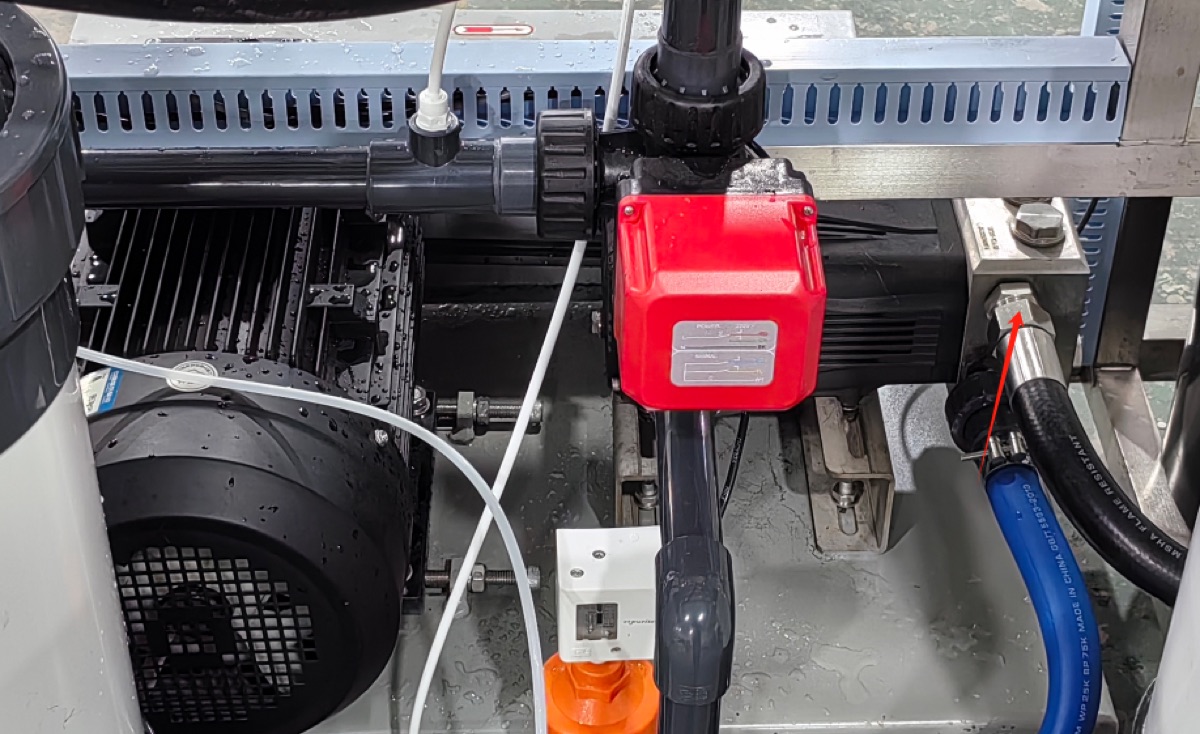

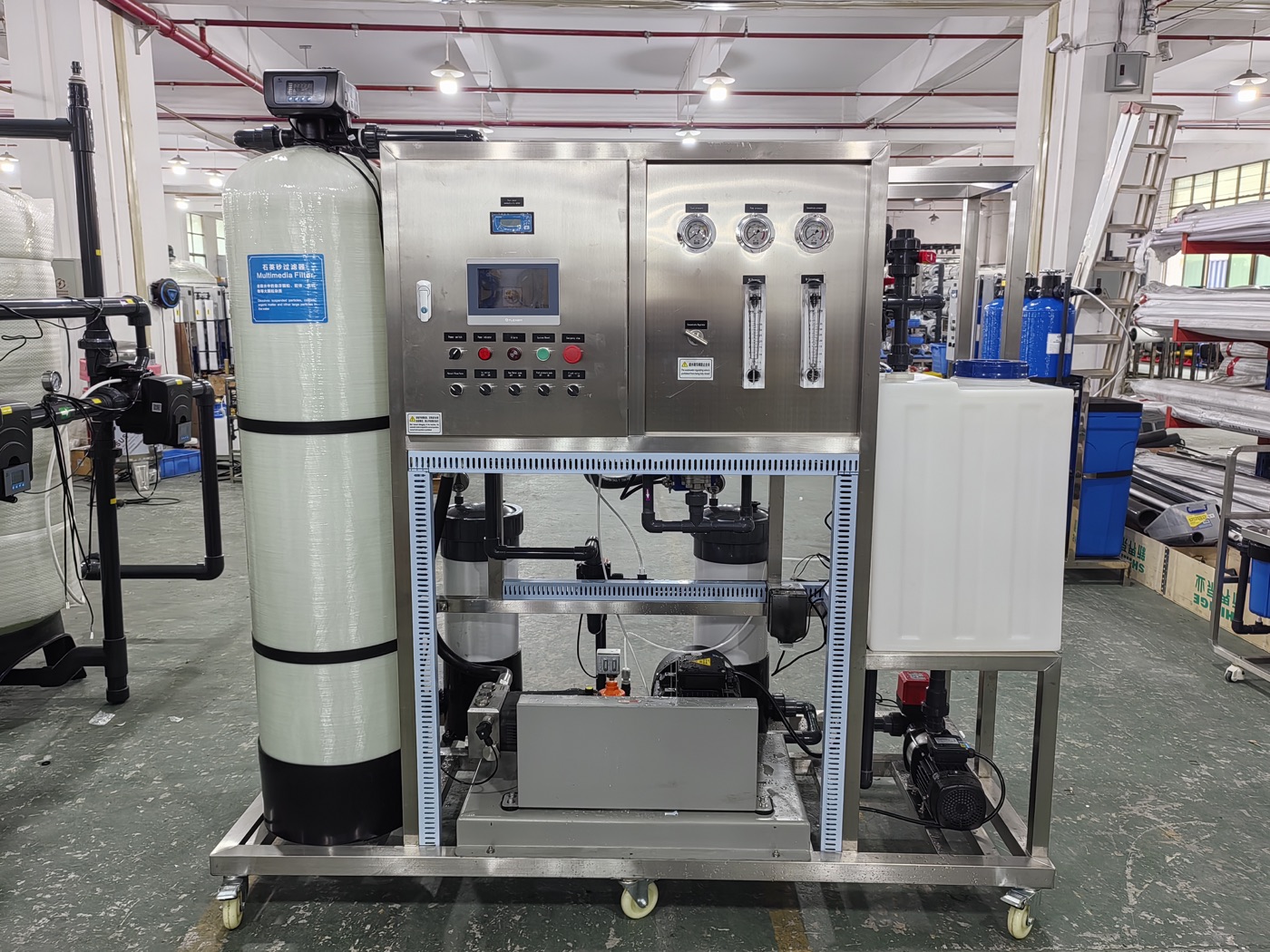

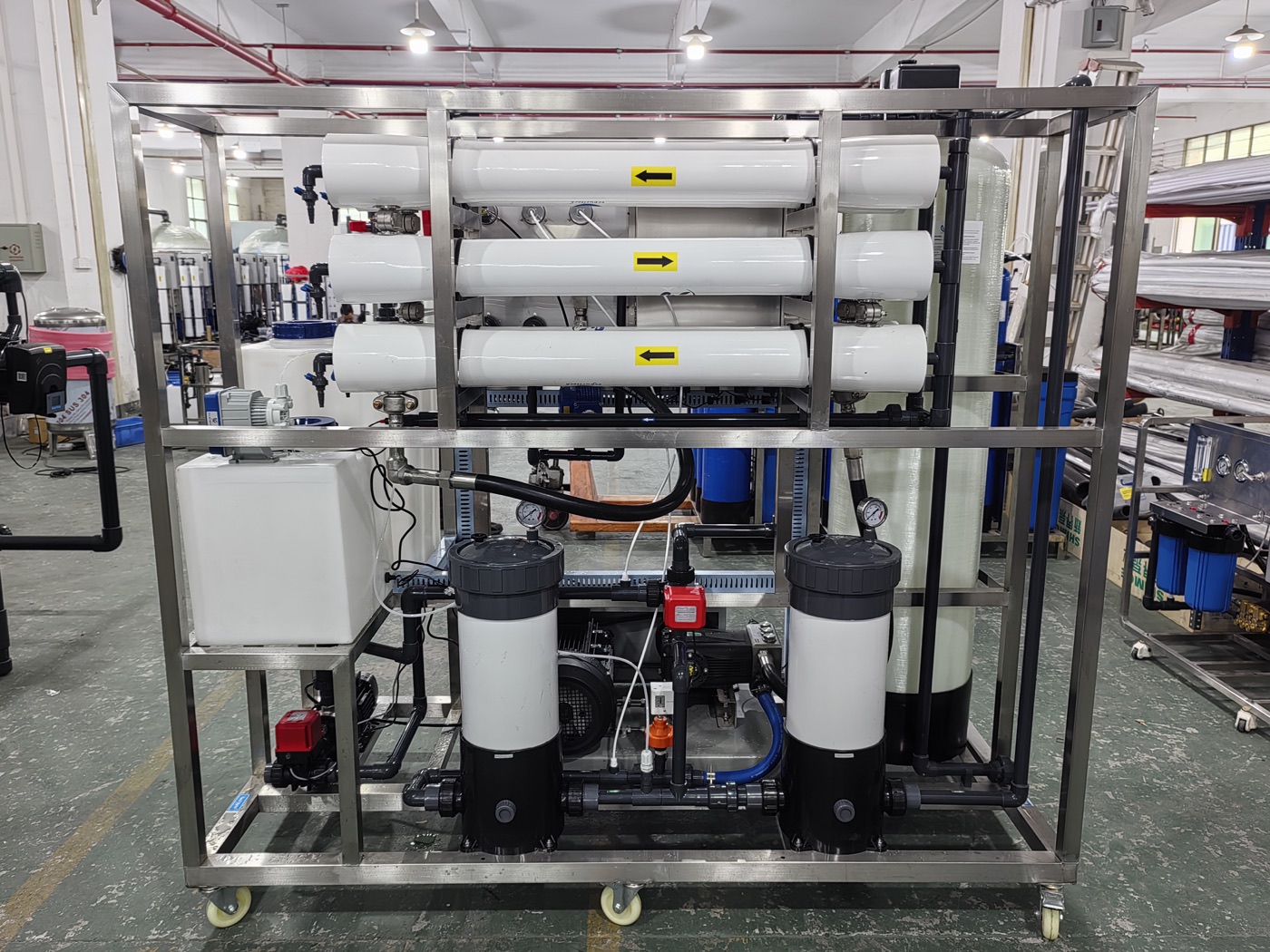

| Seawater main machine | HP pump LD7215-N24 / SS, SW4040LE seawater membrane x 6 by Vontron, FRP membrane housing 4040 x 6 rated 1000 PSI, CCT-3320V conductivity meter x 1, seawater controller PLC and FLEXEM touch screen. |
| CIP cleaning system | PE CIP tank 1000 L x 1 pc. Cleaning water pump can be shared with the raw water pump when the engineering design confirms it. |
| Voltage | 380V, 50Hz, 3 phase. Other voltage requirements can be discussed before quotation. |
FAQ
RO Seawater Desalination Equipment FAQ
Yes. Capacity can be specified as 1T, 2T, 3T, 5T or larger according to raw water quality, target permeate output, recovery rate, membrane selection and site conditions.

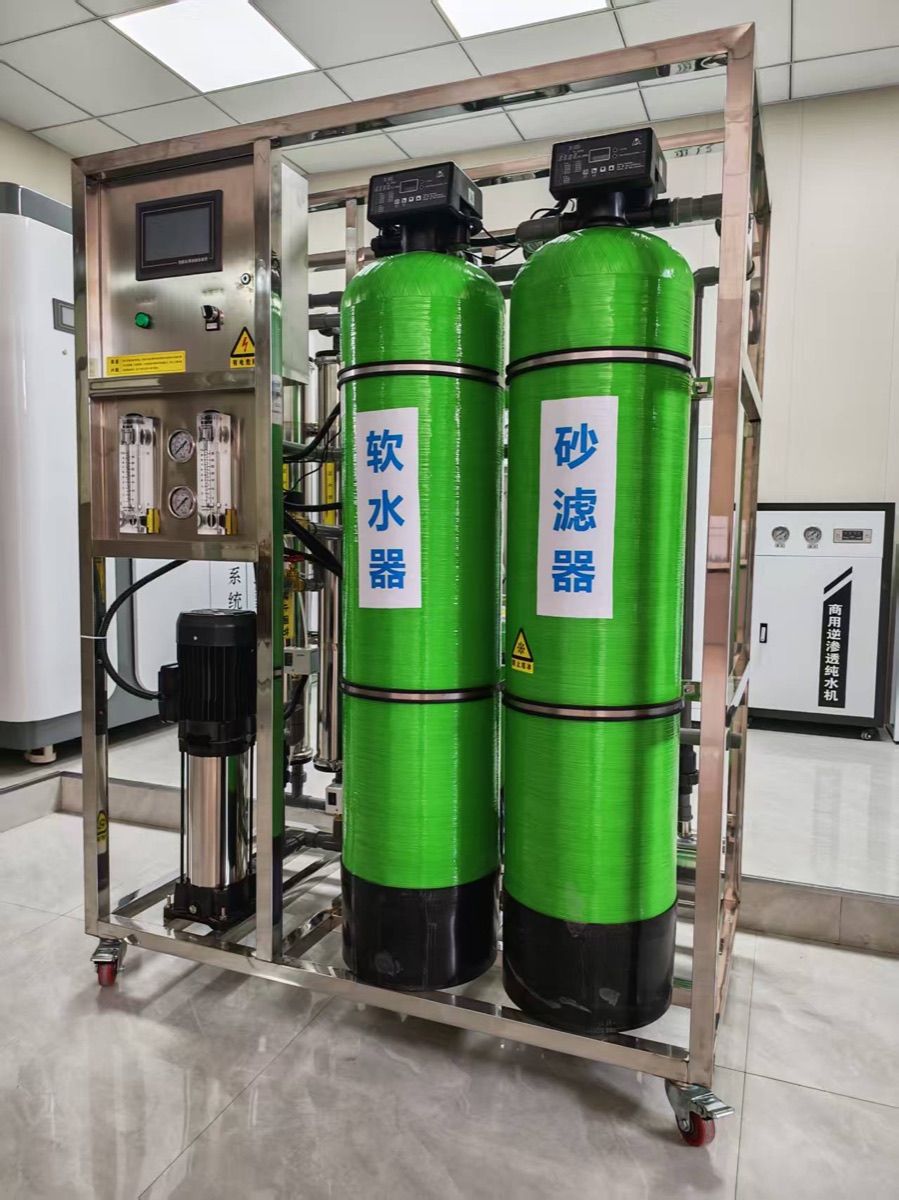

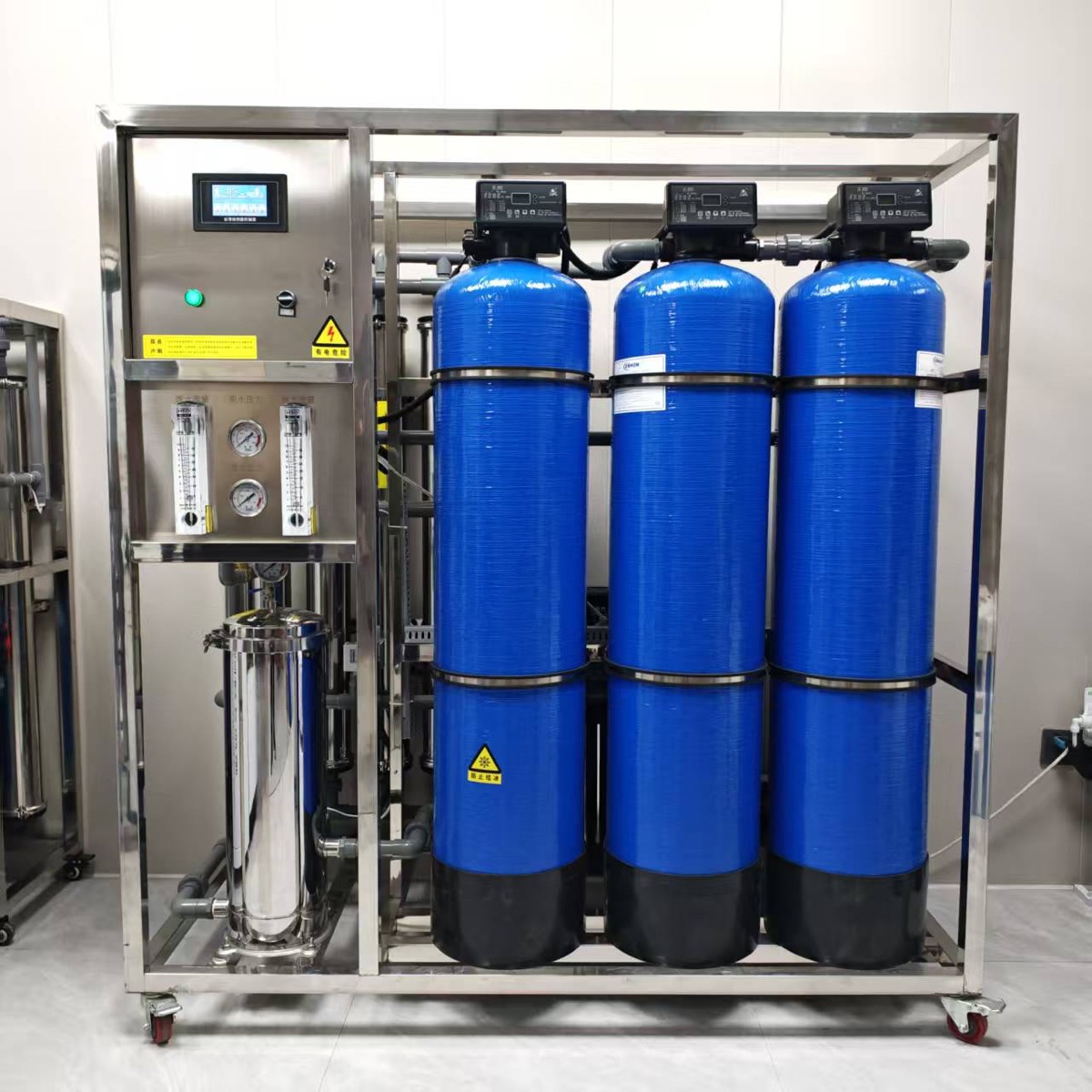

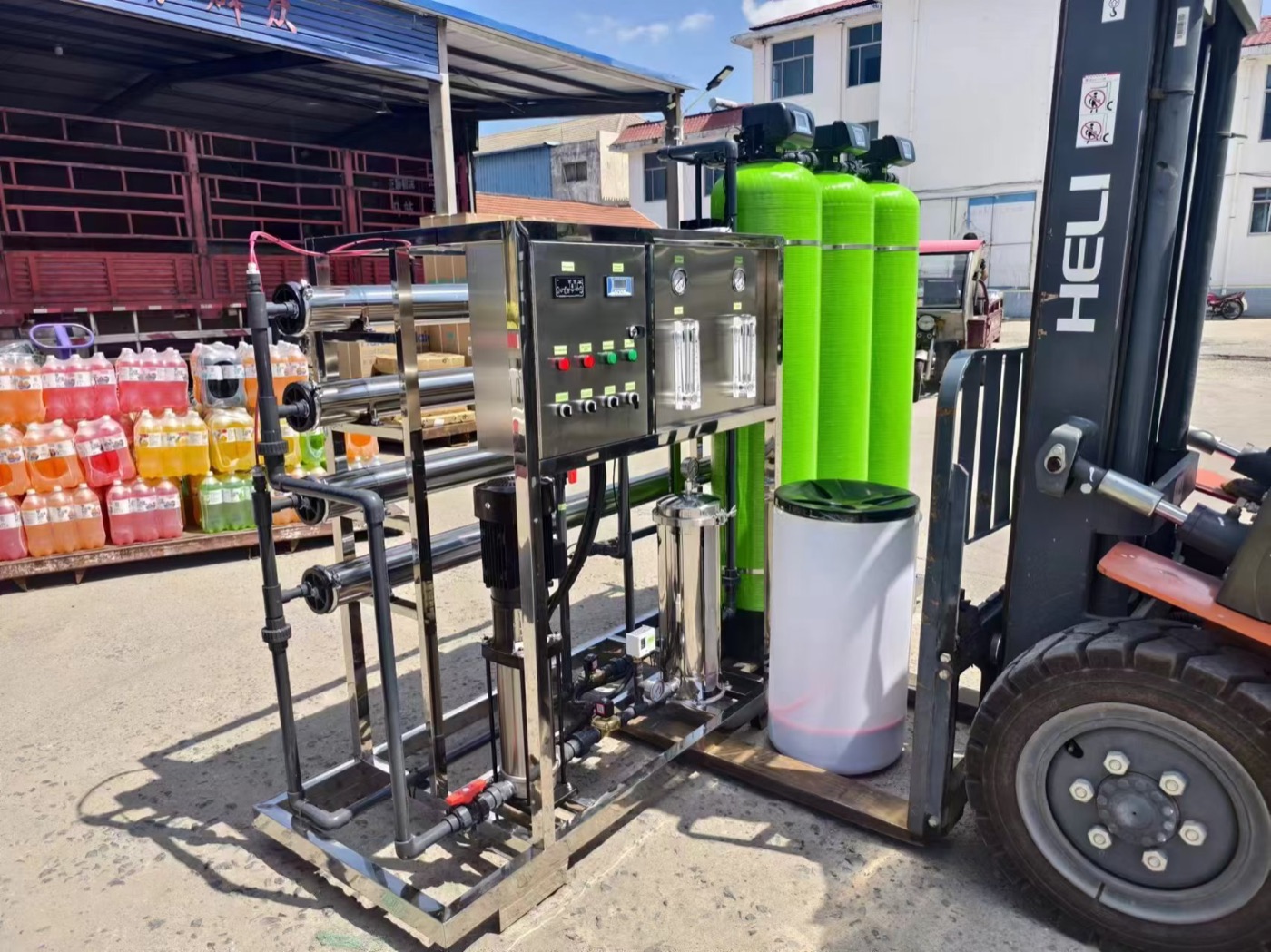

Yes. Two-tank and three-tank layouts are available. Common choices include quartz sand filter, activated carbon filter and softening tank before the security filter and RO main machine.
Yes. Runxin and Fleck valves can be quoted according to buyer preference, local maintenance habit, tank size and automation requirements.
Yes. Seawater desalination systems can include seawater RO membranes, high pressure pump, 1000 PSI membrane housings, dosing system, conductivity meter, PLC controller and CIP cleaning system.
Please provide raw water type, TDS or salinity, required output, voltage, application, site space, automation requirement, preferred component brands, order quantity and destination port.
Yes. Control panel layout, labels, language, PLC or touch screen interface and operation logic can be discussed for confirmed OEM/ODM or engineering projects.

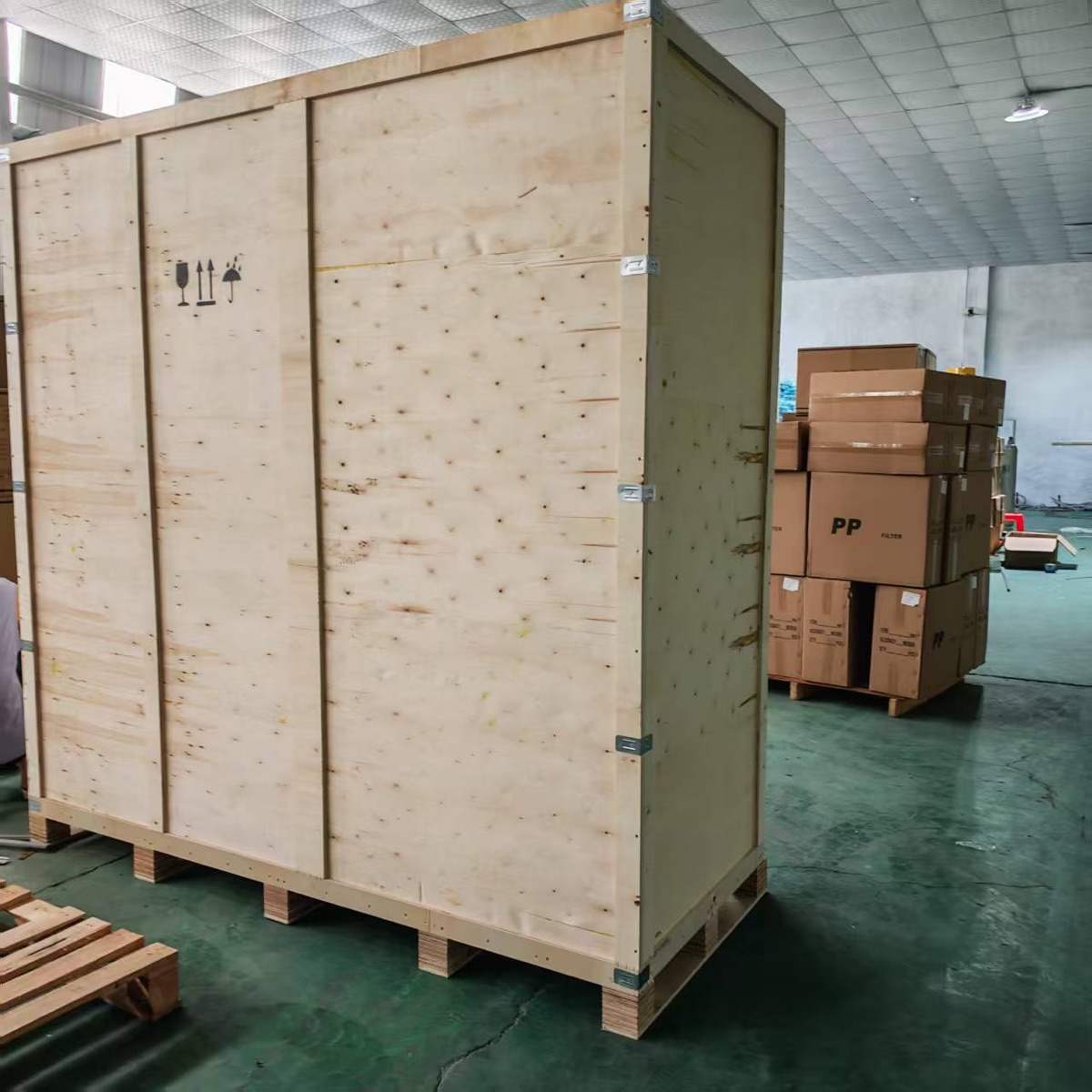

Large RO machines can be protected with wrapping, fixed inside a frame and packed in export wooden crates. Shipping marks and basic export documents can be prepared for the destination port.
Quality checks can include component inspection, production line inspection, pressure and leak testing, flow rate confirmation, electrical control check, random batch inspection and export document support.
